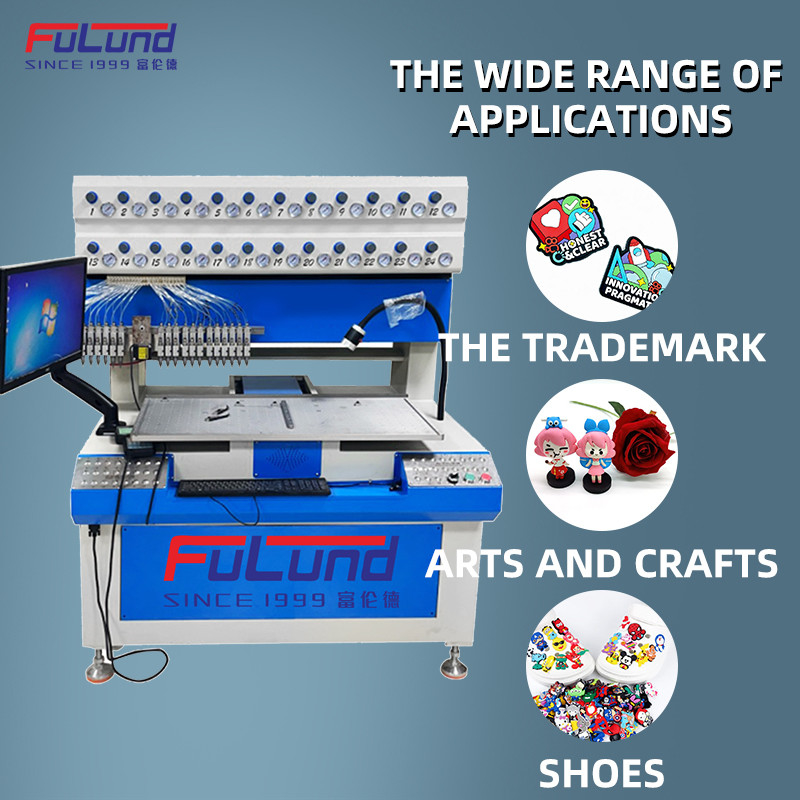

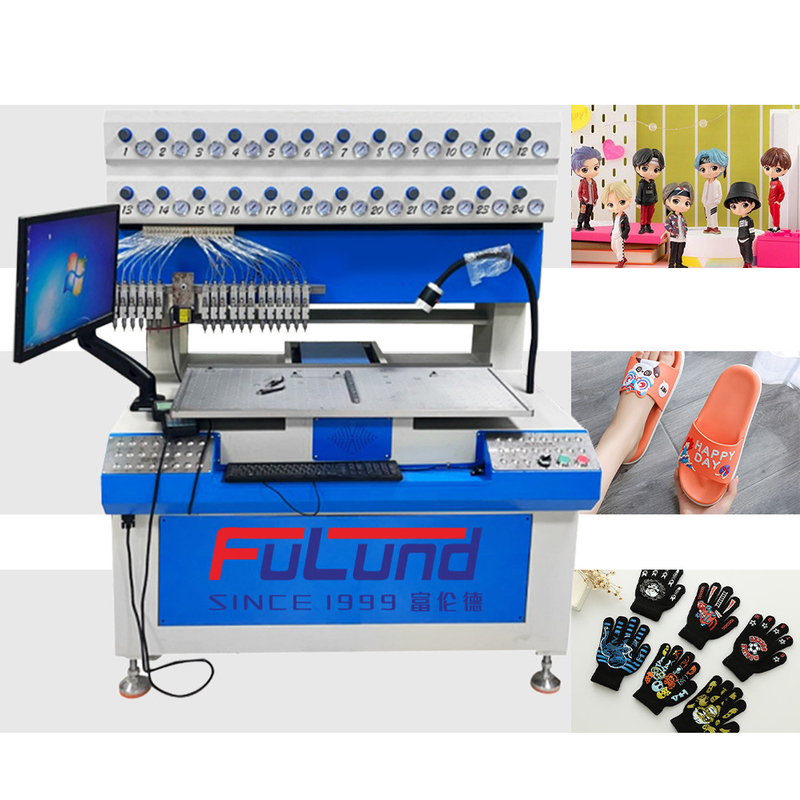

Glue Automatic Pvc Dispensing Silicone Phone Cover Making Machine With Cheap Price
How to use the dispenser:
1. Install the fixing frame of the product that needs to be dispensed, turn on the air pressure and the power of the machine, pour the glue to be used in the hose, and fix the height of the hose.
2. Programming: Compile the program according to the dispensing graphics required by the product. After the program is programmed, set the dispensing speed, the relative value of the height of the Z-axis, and the dispensing time and other related parameters.
3. Reference point setting: Enter Setup﹥ to select the reference point to use, press ENTER, the reference point will be recorded and marked on the holder. If the needle changes, the needle will not be on the reference point. Correct the reference point by adjusting the X, Y and Z axes. After the adjustment is completed, press Home to return to the origin, and the setting is completed.
4. Air pressure setting: Set the corresponding air pressure according to the viscosity of the glue.
Application Rang: PVC/Silicon logo, Trademark for garment, footwear outsole/Strap/Vamp, Shoe welting, Cup pad, Silicon keyboard cover, Non-slip mat, Refrigerator Sticker, Disney soft toy, Silicon Key Chain, PVC Zipper puller etc....
Technical parameters:
| Model No. | FLD-24C |
| Machine Size | 1250*1050*1560mm |
| Weight | 420KG |
| Electric Heating Power | 1.6KW |
| Effective Trip | 850*480*80mm |
| Worktable Size | 890*460mm |
