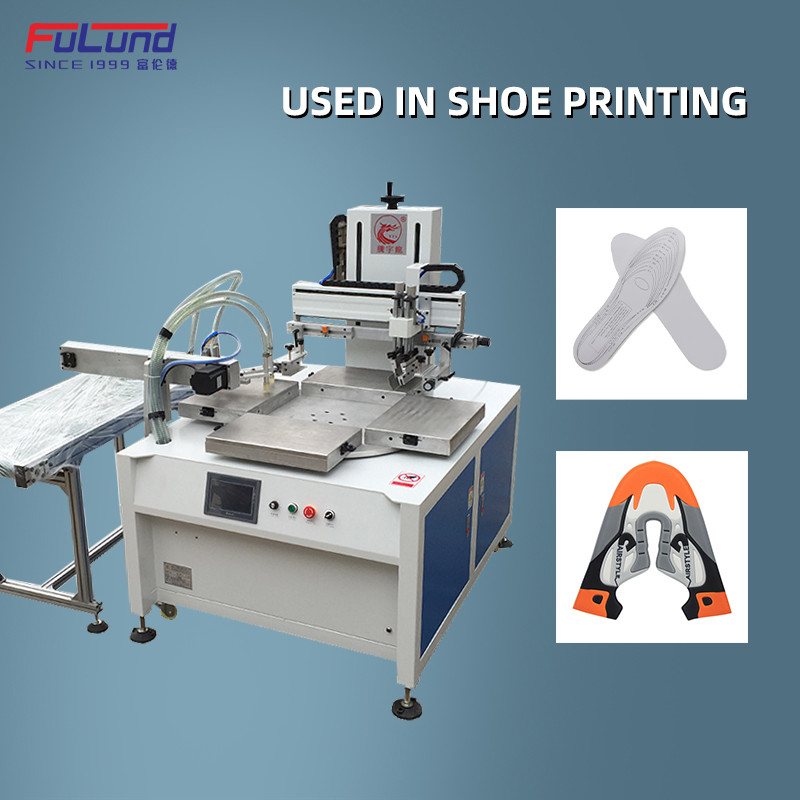

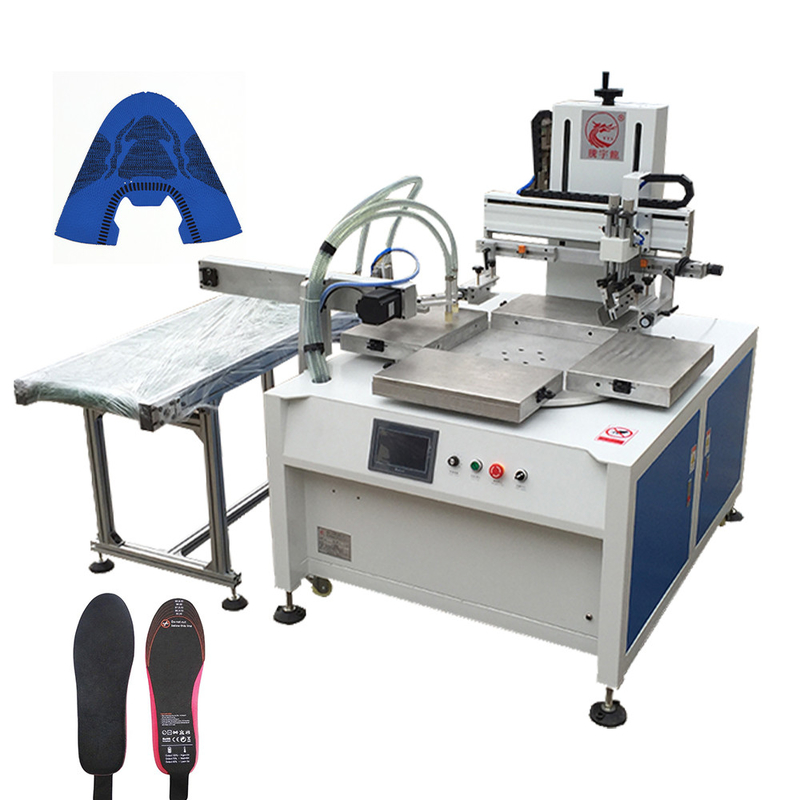

Usa Europe Hot Sale Style Ce Oem Silk Flat Balloons Automatic Screen Printing Machine
Fulund Printing Assortment
Screen printing is not only suitable for general paper printing, but also has a wide range of adaptability. For example: ceramics, glass, printed circuit boards, etc. Depending on the texture of the substrate, the printing is not the same. Although each series has an inseparable internal relationship, each has its own particularity due to the difference in the substrate (that is, the chemical and physical properties are different). Therefore, people are usually divided into different types of substrates: paper printing, plastic printing, ceramic printing, glass printing, circuit board printing, metal printing, textile printing, etc. In this way, their respective relatively independent printing systems are formed.
Scope of application:

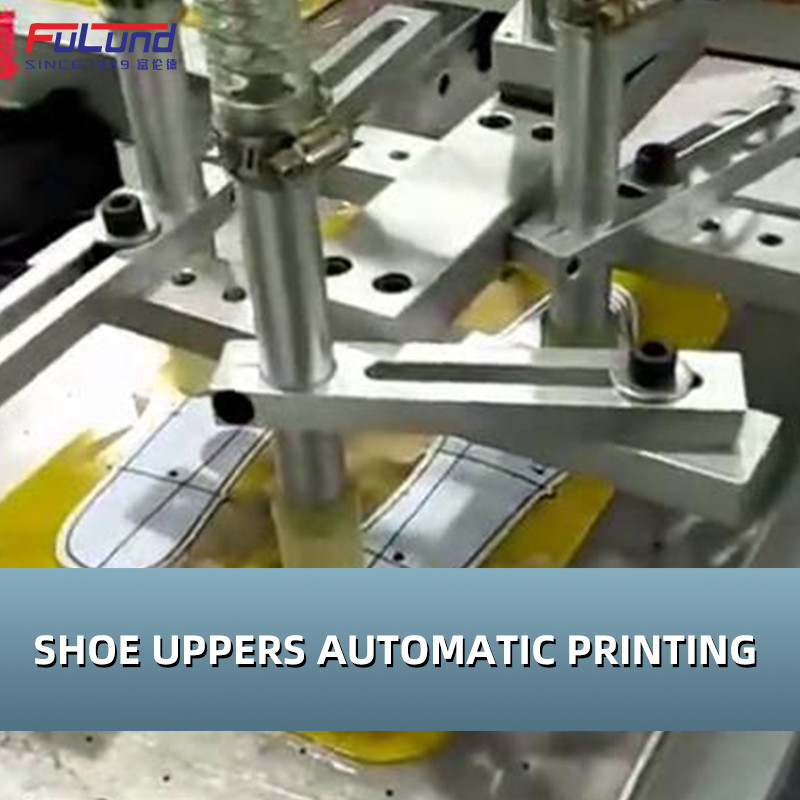

Widely use in the printing of gloves, insoles, shoes upper, mid-sole, bags and other industries , print the position line, mark line and other various shape of cut-parts .
Features:
1, Automatic printing, automatic receiving, can stack according to the setting quantity, no need manual count and can packaging directly.
2, Manual feeding material , suit for any shape material, broad scope.
3, Positioning rapid, change printing plate easily, simple to operate.
4, Reduce manual printing and receiving process, workers only need put the material, high efficiency, 2 Seconds one time, the efficiency is 1.5 times of the traditional process.
| Model No. |
Machine measure(mm) |
Wood case measure(mm) |
N.W/ G.W (kg) | Capacity |
Max printing size |
| FLD-688C | 1740*1500*1530 | 1830*1570*1650 | 450/550 | 1500times/hour | 450*300mm |
| Voltage | Air pressure | Power |
Printing thickness |
Printing platform |
|
| 220V | 4.5~6kpa | 6.9kw | 0~50mm | 600mm |
Contrast:
| Capacity | Feeding way | Receiving way | Printing way | Operator | |
| Traditional machine | 800times/hour | Manual | Manual | Manual put label | 1 |
| FLD-688C | 1500times/hour | Manual | Automatic | Automatic put label | 1 |
Conclustion:Use FLD-688C, four-station, factory can become automatic, one person can operate one set machine, workers only need put the material, no need manual print, can reduce operator fatigue, higher efficiency, can save more labor cost. For example: Monthly labor cost $547, the label cost can save 547x12x1.5=$9846 one year.
